STEP 1
Make sure Your mini is setup and connected to the Internet
1.Plug one of the supplied ethernet cables into your Routie Mini, OR into the same network switch that your Mini or Cube is plugged in to.
*Mini ethernet Port

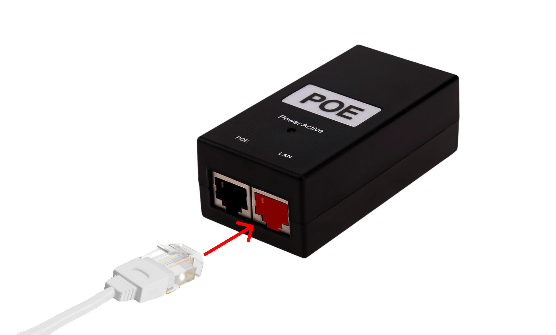

2.Plug the other end of this ethernet cable into the supplied PoE injector (small black brick), make sure you plug it in to the side marked LAN.
*Connect ethernet cable to PoE Injector
STEP 2
Connect Your Edge Extender To Your Mini/Cube
3.Take the second supplied ethernet cable and plug it into the Edge Extender, looking from the back of the EE, you must plug it in to the port to your right (see Diagram A.1).
4.Plug the other side of this ethernet cable into the PoE injector on the side marked POE (see Diagram A.2).
5.Take the supplied electric cord and plug it in to the PoE injector, and then plug the other end into a wall power source (see Diagram A.3).
6.Wait 10 minutes for your Edge Extender to initialize for the first timeCongratulations, your Edge Extender should be emitting Routie Free Internet
Your Edge Extender Setup Is Complete!
SAFETY INFORMATION
Changing any components in this hardware will void its warranty and may damage this device. This device meets the requirements for the EU conformity in accordance with the currently valid EU directives. More information on this product can be found at Routie.io.
If you have any questions or need support, please email us at support@routie.io.
